Actigraphy

Commands for multi-day actigraphy analysis

These commands support analysis of wrist or waist actigraphy recordings spanning multiple days. DAYS creates structured day and clock-time annotations (calendar days, hourly windows, and AM/PM halves) across the recording, providing the temporal scaffolding needed for circadian analyses. ACTIG computes non-parametric circadian rhythm metrics (IS, IV, RA, L5/M10, and related measures) and applies a simple threshold-based wake/sleep scoring algorithm to the actigraphy signal.

Command	Description
DAYS	Create day and clock-time annotations for multi-day recordings
ACTIG	Non-parametric circadian metrics and wake/sleep scoring

---

DAYS

Create day and clock-time annotations for multi-day recordings

DAYS creates annotation intervals marking calendar days and optionally hourly clock-time windows across a multi-day recording. It is primarily designed to be used before ACTIG or other analyses that benefit from day-indexed stratification.

Day annotations (day01, day02, …) span successive 24-hour anchored windows starting from the last anchor-hour at or before the recording start. By default days begin at noon (anchor=12); set anchor=0 for midnight-anchored days. With hours, hourly annotations (00h–23h) are also written. With halves, AM and PM annotations are written spanning midnight-to-noon and noon-to-midnight.

Parameters

Parameter	Default	Description
anchor	12	Hour (0–23) at which each ACTIG day begins (default: noon)
prefix	day	Prefix for day annotation labels
hours	—	Also create hourly annotations (00h, 01h, …, 23h)
hour-prefix	—	Prefix for hourly annotation labels
halves	—	Also create AM and PM annotations
weekend	—	Also create a WEEKEND annotation for anchored days falling on Saturday or Sunday
weekend-label	WEEKEND	Label for weekend annotations
verbose	—	Emit day-level details to the output database

Example

luna s.lst -s 'DAYS anchor=12 hours weekend'

---

ACTIG

Non-parametric circadian metrics and wake/sleep scoring from actigraphy

Active development

ACTIG is under active development and expansion. Defaults, scoring options, QC behavior, and output details may still evolve.

ACTIG analyses a continuously sampled activity channel — actigraphy counts, ENMO, or any other non-negative movement metric — recorded over multiple days. It computes standard non-parametric circadian rhythm metrics, performs epoch-by-epoch sleep/wake scoring, and produces per-day summaries with optional day-level quality control.

---

Overview

ACTIG operates in layers:

1. Epoch binning — the activity signal is averaged (or summed) into fixed-length epoch bins (default 60 s).
2. Gap detection — epochs with fewer than gap-min-pct% of their expected samples are flagged as gaps and excluded from all downstream calculations.
3. NP circadian metrics — computed from the full epoch time series regardless of scoring mode.
4. Scoring — optional epoch-level or period-window scoring using one of three methods.
5. Fragmentation and sleep summaries — computed within SP/WP period windows.
6. Day-level QC — a second pass that flags technically unreliable days.

---

Input signal and epochs

ACTIG reads a single activity channel and bins it into non-overlapping epochs of equal length anchored to recording time.

Parameter	Default	Description
sig	required for scoring	Activity channel name. Omit (or use wildcard sig=*) when using pre-existing annotations (prescored or implicit prescored mode)
epoch	60	Epoch length in seconds. The luna method accepts any length; cole and threshold require exactly 60 s
bin	60	Bin size in minutes for non-parametric circadian metrics
sum	off	Use the sum rather than the mean when binning raw samples into epochs (useful for counts-like signals)
day-anchor	12	Clock hour (0–23) at which ACTIG days begin. The default noon keeps a typical overnight sleep episode within one ACTIG day

---

Gaps (EDF+D)

A gap in ACTIG means missing or invalid signal samples — either EDF+D discontinuities or intervals masked beforehand with MASK and RE.

Parameter	Default	Description
gap-min-pct	50	Minimum percentage of expected samples required for a valid epoch

Gap epochs are excluded from circadian metrics, sleep/wake summaries, and scoring. ACTIG scores each contiguous non-gap block independently and never bridges across a gap.

EDF+D holes vs within-record gaps

After MASK + RE, the EDF becomes discontinuous (EDF+D). ACTIG detects these holes from the EDF record structure and excludes them from SCORE_GAP_MIN — they are already marked by EXCLUDED annotations from MASK. This ensures TST + TWT + GAP_MIN = valid retained-record minutes in both signal-based and annotation-based runs.

---

Non-parametric circadian metrics

NP circadian metrics are always computed when a signal is available, regardless of scoring mode. They summarise the shape, stability, and strength of the rest-activity rhythm.

Variable	Description
NP_IS	Interdaily Stability — regularity of the rest/activity rhythm across days (0–1; higher = more regular)
NP_IV	Intradaily Variability — within-day fragmentation of the rhythm (0–2; higher = more fragmented)
NP_RA	Relative Amplitude — contrast between most-active and least-active windows: (M10 − L5) / (M10 + L5)
NP_L5	Mean activity in the least-active 5 h window
NP_L5_ONSET	Clock time at which the L5 window begins (HH:MM:SS)
NP_L5_ONSET_MIN	L5 onset as decimal minutes from midnight
NP_M10	Mean activity in the most-active 10 h window
NP_M10_ONSET	Clock time at which the M10 window begins
NP_M10_ONSET_MIN	M10 onset as decimal minutes from midnight

Parameter	Default	Description
l	5	Window size in hours for the least-active period (L5)
m	10	Window size in hours for the most-active period (M10)
np-step	1	Sliding-window step size in minutes for L5/M10 onset search
np-traditional	off	Use the classic 60-minute onset search step
np-full-days	T	Restrict NP metrics to complete 24 h recording days

---

Annotation label scheme

ACTIG uses a two-level annotation scheme:

• Period-window annotations (coarse, written by score-period): SP and WP mark the overall sleep opportunity and wake windows across each day.
• Epoch-level annotations (granular, written by score): S and W label every individual epoch.

Label	Type	Written by	Meaning
SP	Period window	score-period	Sleep period window
WP	Period window	score-period	Wake period window
GP	Gap run	score-period	Gap epochs within period scoring
S	Epoch label	score	Sleep epoch
W	Epoch label	score	Wake epoch
G	Gap run	score	Gap epochs within granular scoring

All labels can be overridden with sleep=, wake=, gap-out=, sleep-period=, wake-period=.

Pre-existing label collision

score halts if S or W annotations already exist; score-period halts if SP or WP exist. Use DROP-ANNOTS annot=SP,WP,S,W,G,GP to clear stale labels before re-running.

---

Operating modes

ACTIG selects its operating mode based on the parameters provided:

Mode	Invocation	Signal required?	Output
NP only	ACTIG sig=activity	Yes	NP circadian metrics only
score-period	ACTIG sig=activity score-period	Yes	Writes SP/WP period-window annotations. No metrics emitted.
score	ACTIG sig=activity score	Yes	Writes S/W epoch annotations; NP metrics, sleep summaries, fragmentation
prescored (explicit)	ACTIG prescored	No	Uses existing S/W annotations; computes TST and fragmentation
prescored (implicit)	ACTIG (S/W exist)	No	Automatically detects S/W in memory and proceeds as prescored

score-period

score-period runs the luna scoring algorithm with coarse defaults designed to produce large, contiguous period windows rather than epoch-by-epoch decisions. It only writes SP/WP annotations and suppresses all metric output — it is purely an annotation-writing pass.

Default parameters for score-period vs score:

Parameter	score-period	score	Rationale
smooth	30 min	1 min	Wide smoothing collapses brief movement bursts into the sleep window
burst	10 min	3 min	Wider burst window avoids triggering on isolated bouts
min-sleep	60 min	5 min	Only long sustained quiet periods qualify as a sleep period window
max-gap	10 min	1 min	Short wake intrusions are bridged for contiguous SP windows
min-wake	20 min	1 min	Long sustained wake closes the sleep period window

score

score uses granular defaults that preserve every brief awakening. The asymmetric persistence rule — min-wake=1 but min-sleep=5 — means the scorer is quicker to detect wake than to call new sleep, so fragmentation metrics are sensitive to brief arousals.

prescored / implicit prescored

Use prescored when epoch annotations come from PSG, a sleep diary, or another algorithm. Pass custom label names with prescored=SLEEP,WAKE. If no mode is specified and S/W already exist in memory, ACTIG automatically enters implicit prescored mode.

Tip

If neither S nor W annotations are found and no mode is specified, ACTIG returns silently without output.

---

Recommended two-run workflow

The standard pipeline combines score-period and score:

luna s.lst -o out.db -s '
  DROP-ANNOTS annot=SP,WP,S,W,G,GP &
  MASK if=EXCLUDED &
  RE &
  ACTIG sig=activity score-period &
  ACTIG sig=activity score'

1. DROP-ANNOTS — clear any stale labels from a previous run.
2. MASK if=EXCLUDED + RE — remove non-wear / bad intervals; the EDF becomes EDF+D with the masked records as gaps.
3. ACTIG score-period — coarse pass: writes SP/WP period windows.
4. ACTIG score — granular pass: writes S/W epoch labels, computes all metrics using the SP/WP windows from step 3.

To extract results:

# Individual-level (cross-day averages)
destrat out.db +ACTIG -r ""

# Per-day
destrat out.db +ACTIG -r DAY

To use sleep diary period windows instead of score-period:

luna s.lst -o out.db -s '
  ADD-ANNOTS file=diary.annot &
  ACTIG sig=activity score sleep-period=DIARY_SP wake-period=DIARY_WP'

---

Scoring methods

Method	Epoch size	Device-agnostic?	Best for
luna	Any	Yes	Default choice. Works with ENMO, counts, or any non-negative activity metric. Robust to device and scale differences.
cole	Exactly 60 s	No	Exact replication of the Cole–Kripke 1992 weighted-average algorithm. Requires counts-calibrated device data.
threshold	Exactly 60 s	No	Simple fixed-count threshold. Useful for device-specific thresholds or quick comparisons.

Use method=luna (default), method=cole, or method=threshold.

Luna method

The luna method is device- and epoch-size-agnostic. Rather than comparing raw counts to a fixed threshold, it asks: is this epoch relatively quiet, locally non-bursty, and part of a sustained low-activity period?

Algorithm:

1. Log transform — log(1 + activity) compresses extreme bursts so quiet, moderate, and highly active epochs can be compared on the same relative scale.
2. Robust normalisation — centre and scale using recording-wide median and MAD. Makes the method insensitive to extreme epochs and between-device scale differences.
3. Moving-median smoothing — centred moving median of width smooth minutes captures the local quiet/active background.
4. Burst density — for each epoch, estimate the fraction of recent epochs exceeding burst-z. A quiet epoch inside a restless window should not typically be scored as sleep.
5. Candidate sleep — an epoch qualifies only if smoothed z-score < quiet-z AND burst density < active-frac.
6. Pass 1 — fill short wake interruptions — wake gaps shorter than max-gap minutes inside a sleep run are relabelled sleep.
7. Pass 2 — minimum sleep run — sleep runs shorter than min-sleep minutes are removed.
8. Pass 3 — wake persistence — once wake runs for min-wake consecutive minutes, the current sleep bout ends.

All passes operate independently within each contiguous non-gap block.

Parameter	score default	score-period default	Description
smooth	1 min	30 min	Moving-median smoothing window
burst	3 min	10 min	Burst-density estimation window
burst-z	0.5	0.5	Z-score threshold for burst counting
quiet-z	−0.5	−0.5	Max smoothed z-score for candidate sleep
active-frac	0.20	0.20	Max burst density for candidate sleep
min-sleep	5 min	60 min	Minimum sleep run to retain
max-gap	1 min	10 min	Max within-sleep wake gap to fill
min-wake	1 min	20 min	Consecutive wake minutes to end a sleep bout
channels	off	off	Write diagnostic intermediate channels to the EDF

Cole–Kripke method

A direct implementation of the Cole–Kripke 1992 weighted moving-average algorithm for 60-second counts. Requires epoch=60 and counts-calibrated data.

weighted score = 0.001 × Σ(weight × activity of neighbouring epoch)
wake if score ≥ cole-thresh; sleep otherwise

Parameter	Default	Description
cole-thresh	1.0	Wake/sleep cutoff for Cole–Kripke scoring

Threshold method

Simple fixed-count threshold: epochs at or above thresh are wake; below is sleep. Defaults to the median of all valid epochs.

Parameter	Default	Description
thresh	median	Activity threshold. Defaults to the recording median of valid epochs

Both cole and threshold require epoch=60.

---

Diagnostic channels

When channels is specified with the luna method, ACTIG writes the intermediate processing stages back to the EDF as new signal channels. These are useful for visualising the algorithm in a signal viewer.

Suffix	Step	Content
_Z	Robust z-score	Log-activity centred/scaled by median and MAD
_L	Smoothed z-score	Moving-median output
_D	Burst density	Local fraction of burst epochs (0–1)
_CS	Candidate sleep	Binary flag (1 = candidate sleep)
_SW	Final scored trace	1 = sleep, 0 = wake (gap epochs omitted)

luna actig.edf -s 'ACTIG sig=activity score channels'
# Adds: activity_Z  activity_L  activity_D  activity_CS  activity_SW

---

Fragmentation metrics

Fragmentation metrics are computed when scoring or prescored mode is active. All metrics are calculated separately within the sleep-period window (SP) and within the wake-period window (WP). If no SP/WP annotations are present, ACTIG uses an empirical definition (span from first to last sleep epoch, and its complement).

Parameter	Default	Description
sleep-period	SP	Annotation label for sleep-period windows
wake-period	WP	Annotation label for wake-period windows
tp-lambda	1.0	Bayesian smoothing λ for transition probability estimates (uniform prior)

Standard fragmentation indices

Variable	Units	Description
FRAG_SFI	events/h	Sleep Fragmentation Index — sleep-to-wake transitions per hour of sleep time within the SP window
FRAG_MI_ACT	%	Movement Index — percentage of SP epochs scored as wake
FRAG_FI_ACT	%	Fragmentation Index — percentage of sleep bouts ≤ 1 epoch long within SP
FRAG_SFI_ACT	index	Actigraphy FI — composite: MI_ACT + FI_ACT (mirrors traditional Actiwatch FI)

Transition probabilities

Epoch-to-epoch transition probabilities use a Bayesian maximum-likelihood estimator with a uniform Dirichlet prior controlled by tp-lambda.

P̂(sleep→wake) = (N_SW + λ) / (N_SS + N_SW + 2λ)
P̂(wake→sleep) = (N_WS + λ) / (N_WW + N_WS + 2λ)

Variable	Period	Description
FRAG_TP_SW_S	SP	P(sleep→wake) within sleep period
FRAG_TP_WS_S	SP	P(wake→sleep) within sleep period
FRAG_TP_SW_W	WP	P(sleep→wake) within wake period
FRAG_TP_WS_W	WP	P(wake→sleep) within wake period

Entropy metrics

Shannon entropy metrics capture the irregularity of the sleep/wake sequence beyond what transition counts can express.

Conditional transition entropy:
H(X_t | X_{t-1}) = − Σ_{a,b} P(a,b) · log₂ P(b|a)

Run-length entropy:
H(run-length) = − Σ_k p(k) · log₂ p(k)

Variable	Period	Description
FRAG_TRANS_ENT_S	SP	Conditional transition entropy within sleep period (bits)
FRAG_TRANS_ENT_W	WP	Conditional transition entropy within wake period (bits)
FRAG_RL_ENT_SE_S	SP	Run-length entropy of sleep bouts within sleep period (bits)
FRAG_RL_ENT_WE_S	SP	Run-length entropy of wake bouts within sleep period (bits)
FRAG_RL_ENT_SE_W	WP	Run-length entropy of sleep bouts within wake period (bits)
FRAG_RL_ENT_WE_W	WP	Run-length entropy of wake bouts within wake period (bits)

Bout duration statistics

Variable	Description
FRAG_SLEEP_BOUT_MED_MIN	Median sleep bout duration within SP (minutes)
FRAG_SLEEP_BOUT_P10_MIN	P10 sleep bout duration within SP (minutes)
FRAG_SLEEP_BOUT_MAX_MIN	Maximum sleep bout duration within SP (minutes)
FRAG_WAKE_BOUT_MED_MIN	Median wake bout duration within SP (minutes)
FRAG_WAKE_BOUT_P90_MIN	P90 wake bout duration within SP (minutes)
FRAG_WAKE_BOUT_MAX_MIN	Maximum wake bout duration within SP (minutes)

---

Output

Root stratum (individual-level)

Variables written when score, prescored, or implicit prescored mode is active. These are cross-day averages over days that pass both coverage and QC inclusion.

Variable	Units	Description
SCORE_TST_MIN	min	Total sleep time across all valid epochs
SCORE_TWT_MIN	min	Total wake time across all valid epochs
SCORE_GAP_MIN	min	Total within-record gap time
SCORE_SLEEP_PCT	%	Percent of valid scored epochs called sleep
SCORE_TST_DAYAVG_MIN	min	Mean TST across post-QC included days
SCORE_TWT_DAYAVG_MIN	min	Mean TWT across post-QC included days
SCORE_TST_SP_DAYAVG_MIN	min	Mean TST within SP window across post-QC included days
SCORE_TWT_SP_DAYAVG_MIN	min	Mean WASO within SP window across post-QC included days
SCORE_TST_WP_DAYAVG_MIN	min	Mean TST within WP window (daytime sleep / napping)
SCORE_TWT_WP_DAYAVG_MIN	min	Mean TWT within WP window
SCORE_SLEEP_PCT_DAYAVG	%	Mean sleep percentage across post-QC included days
DAY_N		Total number of days
DAY_N_INCLUDED		Days meeting the day-min-valid coverage threshold
DAY_N_QC_OK		Included days with no QC flags
DAY_N_QC_WARN		Included days flagged with warnings only
DAY_N_QC_EXCLUDED		Days excluded after coverage + QC
DAY_N_INCLUDED_POSTQC		Days contributing to cross-day averages
FRAG_SFI	events/h	Day-averaged sleep fragmentation index within SP
FRAG_MI_ACT	%	Day-averaged movement index within SP
FRAG_FI_ACT	%	Day-averaged fragmentation index within SP
FRAG_SFI_ACT	index	Day-averaged actigraphy FI = MI_ACT + FI_ACT
FRAG_TRANS_ENT_S	bits	Day-averaged conditional entropy within SP
FRAG_RL_ENT_SE_S	bits	Day-averaged run-length entropy of sleep bouts within SP
FRAG_RL_ENT_WE_S	bits	Day-averaged run-length entropy of wake bouts within SP
FRAG_TP_SW_S	prob	Day-averaged P(sleep→wake) within SP
FRAG_TP_WS_S	prob	Day-averaged P(wake→sleep) within SP
FRAG_SLEEP_BOUT_MED_MIN	min	Day-averaged median sleep bout duration within SP
FRAG_SLEEP_BOUT_P10_MIN	min	Day-averaged P10 sleep bout duration within SP
FRAG_SLEEP_BOUT_MAX_MIN	min	Day-averaged maximum sleep bout duration within SP
FRAG_WAKE_BOUT_MED_MIN	min	Day-averaged median wake bout duration within SP
FRAG_WAKE_BOUT_P90_MIN	min	Day-averaged P90 wake bout duration within SP
FRAG_WAKE_BOUT_MAX_MIN	min	Day-averaged maximum wake bout duration within SP

DAY stratum (per-day)

Output strata: DAY

Variable	Description
SCORE_TST_MIN	Total sleep time for this day (all valid epochs)
SCORE_TWT_MIN	Total wake time for this day
SCORE_TST_SP_MIN	Sleep time within SP window (main-sleep TST)
SCORE_TWT_SP_MIN	Wake time within SP window (WASO)
SCORE_TST_WP_MIN	Sleep time within WP window (nap / daytime sleep)
SCORE_TWT_WP_MIN	Wake time within WP window
SCORE_GAP_MIN	Within-record gap time for this day
VALID_MIN	Valid non-gap minutes for this day
VALID_PCT	Percent of day with valid data
INCLUDED	Coverage flag: 1 if VALID_MIN ≥ day-min-valid
SCORE_SLEEP_PCT	Percent of valid scored epochs called sleep
SCORE_EPOCH_N	Valid epoch count for this day
QC_DAY_OK	1 if day is included and has no QC flags
QC_DAY_WARN	1 if day is included but warning-flagged
QC_DAY_EXCLUDED	1 if day is excluded by coverage + QC
QC_TECH_FLAG_N	Number of technical QC flags triggered this day
FRAG_SFI	Daily SFI (sleep→wake transitions/h within SP)
FRAG_MI_ACT	Daily movement index: % wake epochs within SP
FRAG_FI_ACT	Daily fragmentation index: % sleep bouts ≤ 1 epoch within SP
FRAG_SFI_ACT	Daily actigraphy FI
FRAG_TP_SW_S	Daily P(sleep→wake) within SP
FRAG_TP_WS_S	Daily P(wake→sleep) within SP
FRAG_TRANS_ENT_S	Daily conditional entropy within SP (bits)
FRAG_RL_ENT_SE_S	Daily run-length entropy of sleep bouts within SP (bits)
FRAG_RL_ENT_WE_S	Daily run-length entropy of wake bouts within SP (bits)
FRAG_SLEEP_BOUT_MED_MIN	Daily median sleep bout duration within SP (min)
FRAG_SLEEP_BOUT_P10_MIN	Daily P10 sleep bout duration within SP (min)
FRAG_SLEEP_BOUT_MAX_MIN	Daily maximum sleep bout duration within SP (min)
FRAG_WAKE_BOUT_MED_MIN	Daily median wake bout duration within SP (min)
FRAG_WAKE_BOUT_P90_MIN	Daily P90 wake bout duration within SP (min)
FRAG_WAKE_BOUT_MAX_MIN	Daily maximum wake bout duration within SP (min)

---

Day-level QC

Day-level QC is a second pass applied after scoring. It distinguishes three concepts:

• Gap — missing or invalid signal samples.
• QC exclusion — the day appears technically unreliable (flatline, collapsed variability, stuck-low signal).
• QC warning — the day looks unusual but may be biologically real (e.g. very high sleep fraction, hospitalisation, bedrest).

A day is excluded from cross-day averages when it fails the coverage threshold (VALID_MIN < day-min-valid) OR when it has ≥ 2 technical flags. Single-flag days remain included but are visible in QC_TECH_FLAG_N.

Technical exclusion flags

Flag	Criterion	Interpretation
QC_FLAG_FLAT	Too many adjacent valid epochs barely change	Device freeze, transmission collapse, or near-flat trace
QC_FLAG_LOWVAR	Whole-day variability is collapsed and active structure is sparse	Technically weak or collapsed signal
QC_FLAG_NEARFLOOR	Most valid epochs sit near the day-specific floor	Non-wear, sensor collapse, or stuck-low recording

Warning flags

Warning	Description
QC_WARN_HIGHSLEEP	Very high fraction of valid epochs scored as sleep (default threshold: 0.85)
QC_WARN_LONGSLEEP	Very long contiguous sleep bout (default: > 16 h)
QC_WARN_LOWWAKERUNS	Too few wake runs in the day (default: < 1)
QC_WARN_IMPLAUSIBLE	Combined implausibility: high sleep + long sleep + few wake runs

QC parameters

Parameter	Default	Description
qc-day	T	Enable day-level QC
qc-exclude-out	ACTIG_QC_EXCLUDED	Annotation label for QC-excluded day windows
day-min-valid	960	Minimum valid minutes per day for coverage inclusion (default: 16 h)
qc-flat-frac-th	0.80	Flatline threshold: fraction of adjacent pairs with minimal change
qc-flat-delta-th	0.0	Delta threshold for flatline pair comparisons
qc-lowvar-frac-th	0.80	Low-variability rolling-window occupancy threshold
qc-lowvar-cv-th	0.05	Day-level coefficient of variation threshold
qc-nearfloor-frac-th	0.85	Near-floor occupancy threshold
qc-nearfloor-q-th	0.05	Quantile used to define the day-specific near-floor reference (P05)
qc-min-active-epochs	24	Minimum active epochs to avoid low-structure technical flags
qc-warn-sleep-pct	0.85	Warning threshold on sleep fraction (0–1)
qc-warn-longsleep-h	16	Warning threshold for longest sleep bout (hours)
qc-warn-low-wakeruns	1	Warning threshold on daily wake-run count

---

Sleep debt

The optional sleep-debt analysis compares the nights immediately before a chosen target night to the same person's own prior baseline — a within-person comparison, not a population norm.

Window structure:

[—— Baseline window (B nights) ——] [— Recent (R nights) —] [Target]

Parameter	Default	Description
debt	off	Enable sleep debt analysis
debt-target	required	Target night: 1-based day number or date (YYYY-MM-DD or DD.MM.YY)
debt-recent	2	Nights in the recent window immediately before target
debt-base	7	Nights in the baseline window before the recent window
debt-min-base	3	Minimum baseline nights for delta and relative TST
debt-min-z	5	Minimum baseline nights for z-scores and composite index
debt-w	0.5	Weight for TST in DEBT_INDEX (fragmentation weight = 1 − w)

Variable	Description
DEBT_MAPPED	1 if the target falls within the recording
DEBT_TARGET_DAY	Target day number (1-based)
DEBT_N_RECENT	Valid included nights in the recent window
DEBT_N_BASE	Valid included nights in the baseline window
DEBT_TST_RECENT	Mean TST over recent nights
DEBT_TST_BASE	Median TST over baseline nights
DEBT_TST_DELTA	Baseline median minus recent mean TST (positive = deficit)
DEBT_TST_REL	Fractional TST deficit relative to baseline
DEBT_TST_Z	Z-score of recent TST relative to baseline distribution
DEBT_FRAG_Z	Z-score of recent fragmentation relative to baseline
DEBT_INDEX	Composite debt index: w × (−TST_Z) + (1−w) × FRAG_Z

---

All parameters — quick reference

Parameter	Mode/Method	Default	Description
sig	score / score-period	required	Activity channel
epoch	all	60 s	Epoch length in seconds
bin	all	60	NP metric bin size in minutes
sum	all	off	Use sum (not mean) when binning
day-anchor	all	12	Clock hour for ACTIG day boundary
score		flag	Granular epoch-level scoring; writes S/W/G
score-period		flag	Coarse period-window scoring; writes SP/WP/GP only
prescored		flag/value	Use existing epoch annotations
sleep-period		SP	Sleep-period window annotation label
wake-period		WP	Wake-period window annotation label
sleep		S / SP	Output label for sleep epochs
wake		W / WP	Output label for wake epochs
gap-out		G / GP	Output label for gap runs
method		luna	Scoring method: luna, cole, or threshold
smooth	luna	1 / 30 min	Moving-median window (min)
burst	luna	3 / 10 min	Burst-density window (min)
burst-z	luna	0.5	Z-threshold for burst counting
quiet-z	luna	−0.5	Max smoothed z-score for candidate sleep
active-frac	luna	0.20	Max burst density for candidate sleep
min-sleep	luna	5 / 60 min	Minimum sleep run to retain
max-gap	luna	1 / 10 min	Max within-sleep wake gap to fill
min-wake	luna	1 / 20 min	Consecutive wake minutes to end a sleep bout
channels	luna	off	Write diagnostic channels to EDF
cole-thresh	cole	1.0	Wake/sleep cutoff for Cole–Kripke scoring
thresh	threshold	median	Activity threshold
tp-lambda		1.0	Bayesian smoothing λ for transition probabilities
gap-min-pct		50	Min % samples for a valid epoch
day-min-valid		960	Min valid minutes for coverage inclusion
np-step		1	L5/M10 onset search step (minutes)
np-traditional		off	Classic 60-min L5/M10 onset search
np-full-days		T	Restrict NP to complete 24 h recording days
qc-day		T	Enable day-level QC
qc-exclude-out		ACTIG_QC_EXCLUDED	Annotation label for QC-excluded day windows
debt		off	Enable sleep debt analysis
debt-target		required	Target night (day number or date string)
debt-recent		2	Recent window nights
debt-base		7	Baseline window nights
debt-w		0.5	TST weight in composite debt index

---

Examples

NP circadian metrics only (no scoring):

luna actig.edf -s 'ACTIG sig=activity'

Two-run workflow

The recommended approach runs score-period first to establish coarse SP/WP windows, then score to assign epoch-level S/W labels and compute all metrics. Non-wear or bad intervals should be masked beforehand with MASK if=EXCLUDED + RE so that the EDF becomes discontinuous (EDF+D) and ACTIG treats those intervals as gaps.

luna s.lst -o out.db -s '
  DROP-ANNOTS annot=SP,WP,S,W,G,GP &
  MASK if=EXCLUDED &
  RE &
  ACTIG sig=activity score-period &
  ACTIG sig=activity score'

Extract results:

destrat out.db +ACTIG          # individual-level (root stratum)
destrat out.db +ACTIG -r DAY   # per-day

Individual-level output (selected variables):

ID       NP_IS  NP_IV  NP_RA  NP_L5_ONSET  NP_M10_ONSET  DAY_N  DAY_N_INCLUDED_POSTQC  SCORE_TST_SP_DAYAVG_MIN  SCORE_TWT_SP_DAYAVG_MIN  FRAG_SFI  FRAG_TP_SW_S  FRAG_TP_WS_S
subject1 0.265  1.792  0.359  23:48:00     09:39:00       7      7                      311                      43.3                     2.470     0.043         0.313

Per-day output (selected variables):

ID       DAY  SCORE_TST_SP_MIN  SCORE_TWT_SP_MIN  SCORE_SLEEP_PCT  FRAG_SFI  QC_DAY_OK  QC_DAY_EXCLUDED
subject1   1               289              54.0             47.3      3.53          1                0
subject1   2               470              76.0             46.8      2.81          1                0
subject1   3               396              24.0             46.0      1.21          1                0
subject1   4               258              38.0             33.5      2.33          1                0
subject1   5               349              60.0             34.3      3.61          1                0
subject1   6               192              25.0             33.5      2.19          1                0
subject1   7               223              26.0             32.4      1.61          1                0

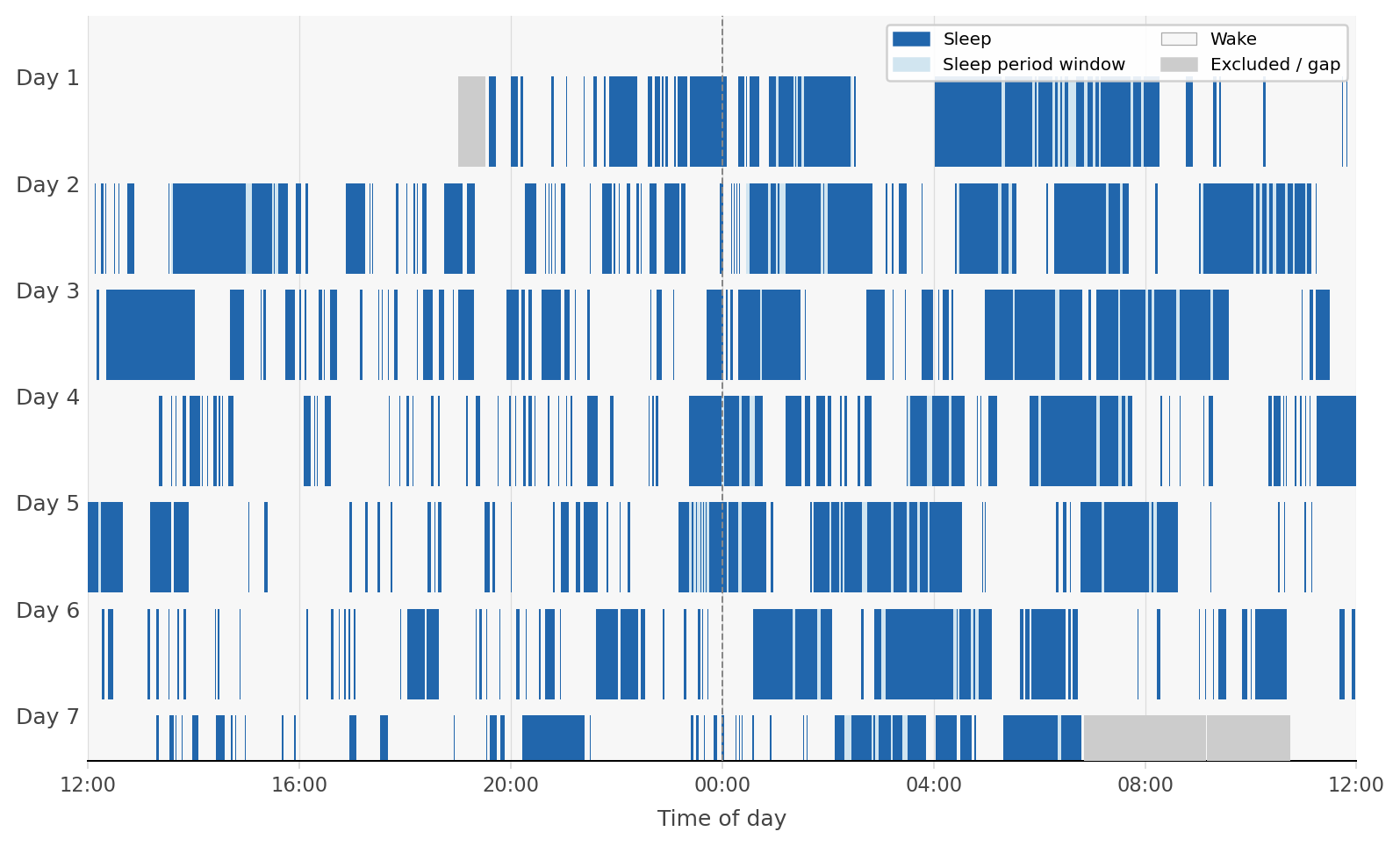

The corresponding actogram and per-day summary for this recording are shown below. Each actogram row spans one noon–noon ACTIG day. The coarse SP window (pale blue) is placed by score-period; epoch-level sleep scoring (dark blue) is placed by score. Non-wear periods masked before running ACTIG appear as grey bands.

The per-day panel shows TST and WASO stacked within the SP window (upper) and the sleep fragmentation index SFI (lower). QC-excluded days would appear in grey.

Visualising actigraphy data

LunaScope can visualise actigraphy signal data alongside ACTIG annotations. See the actigraphy section of the LunaScope documentation (coming soon) for details.

Other examples

Implicit prescored — recompute metrics without re-running scoring:

# S/W/SP/WP were already written by a previous run
luna s.lst -o metrics.db -s 'ACTIG'

Explicit prescored with custom annotation labels:

luna s.lst -o out.db -s 'ACTIG prescored=SLEEP,WAKE'

Cole–Kripke replication (60-second epochs):

luna actig.edf -s 'ACTIG sig=activity epoch=60 score method=cole'

Write diagnostic channels for visualisation:

luna actig.edf -s 'ACTIG sig=activity score channels'
# New channels: activity_Z  activity_L  activity_D  activity_CS  activity_SW

Sleep debt analysis:

luna actig.edf -s '
  ACTIG sig=activity score
  debt debt-target=2024-03-15 debt-recent=2 debt-base=7'

Period windows from a sleep diary:

luna s.lst -o out.db -s '
  ADD-ANNOTS file=diary.annot &
  ACTIG sig=activity score sleep-period=DIARY_SP wake-period=DIARY_WP'
