Epochs

Commands to define epochs for an EDF, and to attach annotations after loading an EDF

Command	Description
Epoch definitions	Overview of epochs
`EPOCH`	Specify epochs
`EPOCH-ANNOT`	Load epoch-wise annotations from a `.eannot`-format file
Command table	Behavior of commands w.r.t. epochs & masks

EPOCH

Divides the time series into epochs

Epoching an EDF is often a first a step that is required for many other Luna functions that work with epoched data. Some commands that require epoched data will automatically set epochs (by default, to non-overlapping 30-second epochs), although alternative epoch rules can be explicitly defined beforehand via the EPOCH command.

Fixed versus generic epochs

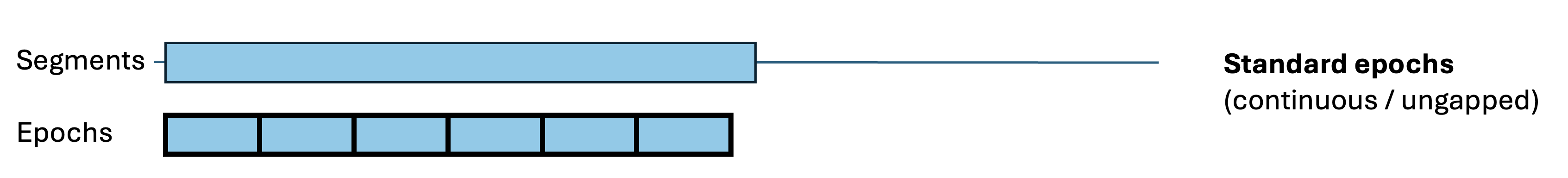

The most basic type of epoch is of fixed length (e.g. 30 seconds). Epochs can be overlapping, e.g. shifting in 15 second increments however, but by default, epochs are contiguous but not overlapping. In contrast, generic epochs are those of potentially variable duration, defined by existing annotations. This is the most flexible form of epoch.

Some commands (in particular HYPNO) require standard, non-overlapping epochs (otherwise, the resulting hypnogram metrics would not be appropriately defined). Most but not all commands can work with generic epochs, as detailed below. Luna will give an error message if trying to use generic epochs with a command that does not accept them.

Parameters

Without any parameters set, the default is 30-seconds, with no overlap (i.e. 30-second increments, equivalent to len=30 or epoch=30). In general, if the increment is not specified, it defaults to the epoch length (i.e. no overlap between epochs).

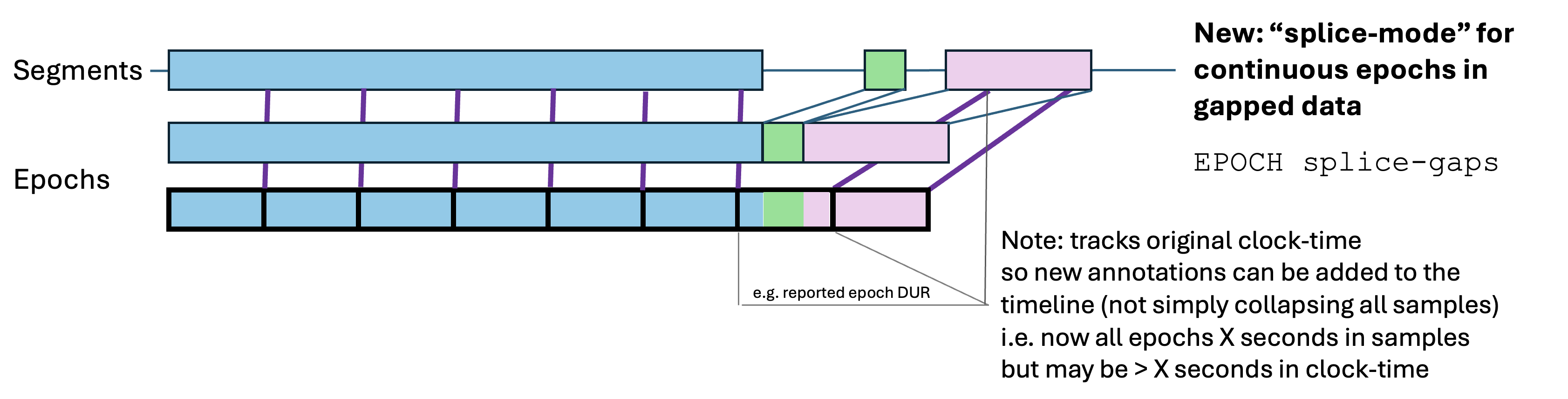

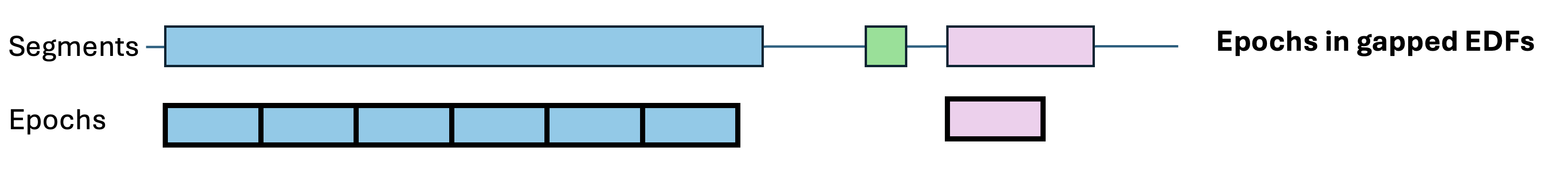

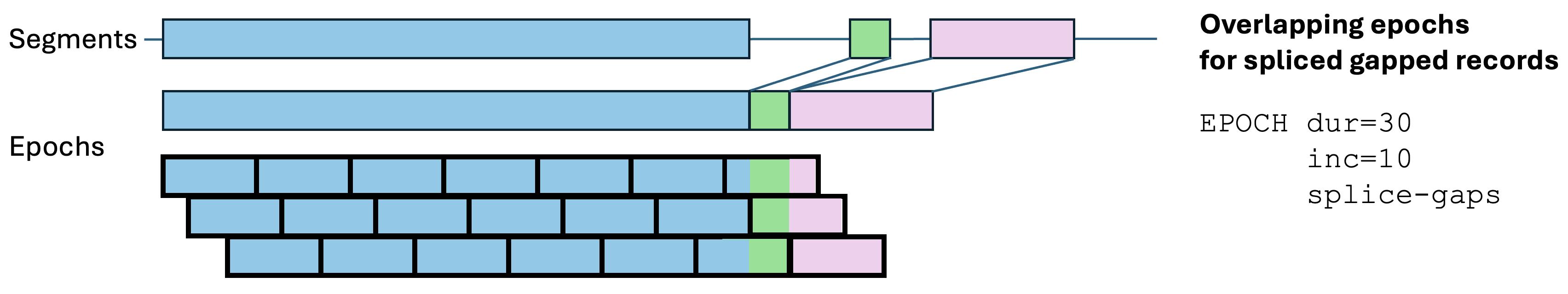

By default, epochs start at 0 seconds (start of EDF). The

Parameter	Example	Description
`len`	30	Epoch length (seconds), defaults to 30
`inc`	30	Epoch increment (seconds), defaults to `len` (i.e. no overlap)
`epoch`	30,15	Epoch length{,increment} (seconds), defaults to 30,30
`require`	10	Stop processing that EDF if there are not at least N epochs
`align`	`N1,N2,N3,R,W,?`	Align epoch starts with the first of these annotations
`offset`	10	Explicitly set start time for first epoch (seconds)
`clear`		Reset any defined epochs

Note: if align is not given an explicit argument, it defaults to N1,N2,N3,R,W,?,L,U,M - i.e. a list of common stage annotations.

Output options

Parameter	Example	Description
`min`		Minimal output: writes the number of epochs to standard output
`verbose`		Output epoch-level information when setting epochs
`table`		As `verbose` except do not change the current epochs, only output the table

Generic epochs

Parameter	Example	Description
`annot`	`spindle`	Set generic epochs based on existing annotations
`w`	`5`	Expanded window (seconds) both before and after each annotation
`w-before`	`5`	Extend annotation `w-before` seconds before the start point
`w-after`	`5`	Extend annotation `w-after` seconds after the stop point
`start`		Reduce annotations to their start (designed to work with `w` )
`midpoint`		Reduce annotations to their midpoint (designed to work with `w` )
`stop`		Reduce annotations to their stop (designed to work with `w` )

Outputs

Basic summary information (strata: none)

Variable	Description
`DUR`	Epoch duration (as per the input)
`INC`	Epoch increment (as per the input)
`NE`	Number of epochs in the EDF, given `DUR` and `INC`
`GENERIC`	Flag to indicate whether epochs are generic (0/1)
`OFFSET`	Any offset (from EDF start)

Per-epoch interval information (option: verbose, strata: E)

Variable	Description
`E1`	Current epoch number (which may differ from `E` if the EDF has been restructured)
`DUR`	Epoch duration (secs)
`LABEL`	Epoch label
`HMS`	Clock-time for epoch start (hh:mm:ss)
`INTERVAL`	String label of epoch interval (seconds)
`MID`	Midpoint of epoch (seconds elapsed from EDF start)
`START`	Start of epoch (seconds elapsed from EDF start)
`STOP`	Stop of epoch (seconds elapsed from EDF start)
`TP`	Epoch interval in time-points (1TP = 1e-9 sec)

Example

Fixed epochs

To set epochs of 10-seconds, each with a 5-second overlap (output showing the first six epochs):

luna my.edf -o out.db -s ' EPOCH len=10 inc=5 verbose '

To get the number of epochs set:

destrat out.db +EPOCH

ID      DUR   GENERIC   INC     NE   OFFSET
nsrr01   10         0     5   8183        0

To get the exact location of each epoch:

destrat out.db +EPOCH -r E

ID     E  DUR E1      HMS      INTERVAL LABEL  MID START  STOP                        TP
nsrr01 1   10  1 21:58:17   0.00->10.00    E1    5     0    10            0->10000000000
nsrr01 2   10  2 21:58:22   5.00->15.00    E2   10     5    15   5000000000->15000000000
nsrr01 3   10  3 21:58:27  10.00->20.00    E3   15    10    20  10000000000->20000000000
nsrr01 4   10  4 21:58:32  15.00->25.00    E4   20    15    25  15000000000->25000000000
nsrr01 5   10  5 21:58:37  20.00->30.00    E5   25    20    30  20000000000->30000000000
nsrr01 6   10  6 21:58:42  25.00->35.00    E6   30    25    35  25000000000->35000000000
... (etc) ...

If we instead first applied a MASK (which implicitly run EPOCH if the data aren't already epoched), RESTRUCTUREed the data, and then requested information only (table) from EPOCH:

MASK epoch=10-14 & RE & EPOCH table

the output would be (i.e. note the difference between E and E1):

ID       E DUR E1      HMS        INTERVAL LABEL  MID START STOP                         TP
nsrr01  10  30  1 22:02:47  270.00->300.00   E10  285   270  300 270000000000->300000000000
nsrr01  11  30  2 22:03:17  300.00->330.00   E11  315   300  330 300000000000->330000000000
nsrr01  12  30  3 22:03:47  330.00->360.00   E12  345   330  360 330000000000->360000000000
nsrr01  13  30  4 22:04:17  360.00->390.00   E13  375   360  390 360000000000->390000000000
nsrr01  14  30  5 22:04:47  390.00->420.00   E14  405   390  420 390000000000->420000000000

Info

The above command implicitly ran an EPOCH command prior to the MASK; the above output will be from the second EPOCH. Here, using TAGs can keep track of the various outputs: e.g.

TAG R/1 & EPOCH & MASK epoch=10-14 & RE & TAG R/2 & EPOCH table

Output from the first (untagged) EPOCH:

destrat out.db +EPOCH -r R

ID      R  DUR  GENERIC  INC    NE  OFFSET
nsrr01  1   30        0   30  1364       0
nsrr01  2   30        0   30     5       0

i.e. note the difference in NE.

Generic epochs

Generic epochs are those based on existing annotations. One or more annotation label followed the annot option of EPOCH: e.g.

EPOCH annot=Obstructive_Apnea,Hypopnea

will define epochs based on apnea or hypopnea events. Note that generic epochs can be a variable size, and can overlap. Running the above (with verbose) produces the following outputs:

destrat out.db +EPOCH

ID      GENERIC   NE
nsrr02        1  106

Note the GENERIC is now set to 1, but there is no information on epoch duration - i.e. because it may vary between epochs. That information is available in the epoch-stratified output (requested by verbose):

destrat out.db +EPOCH -r E

ID     E DUR  E1      HMS         INTERVAL     LABEL  MID     START  STOP   TP
nsrr02 1 10.8  1 22:08:49 3043.70->3054.50  Hypopnea  3049.1  3043.7 3054.5 3043700000000->3054500000000
nsrr02 2 10.5  2 22:16:53 3527.30->3537.80  Hypopnea  3532.55 3527.3 3537.8 3527300000000->3537800000000
nsrr02 3 13    3 22:53:44 5738.40->5751.40  Hypopnea  5744.9  5738.4 5751.4 5738400000000->5751400000000
nsrr02 4 10.5  4 22:55:43 5857.90->5868.40  Hypopnea  5863.15 5857.9 5868.4 5857900000000->5868400000000
nsrr02 5 16.1  5 22:56:01 5875.30->5891.40  Hypopnea  5883.35 5875.3 5891.4 5875300000000->5891400000000
nsrr02 6 15.9  6 22:59:33 6087.20->6103.10  Hypopnea  6095.15 6087.2 6103.1 6087200000000->6103100000000
... (etc) ...

The DUR is the duration of each epoch (which here matches the duration of each hypopnea annotation). The LABEL is the annotation name (Hypopnea or Obstructive_Apnea).

Re-running with the altered command:

EPOCH annot=Obstructive_Apnea,Hypopnea verbose start w-after=5

This should define epochs as 5 seconds, starting at the start of each respiratory event:

ID     E  DUR E1       HMS          INTERVAL     LABEL  MID    START  STOP   TP
nsrr02 1  5   1   22:08:49  3043.70->3048.70  Hypopnea  3046.2 3043.7 3048.7 3043700000000->3048700000000
nsrr02 2  5   2   22:16:53  3527.30->3532.30  Hypopnea  3529.8 3527.3 3532.3 3527300000000->3532300000000
nsrr02 3  5   3   22:53:44  5738.40->5743.40  Hypopnea  5740.9 5738.4 5743.4 5738400000000->5743400000000
nsrr02 4  5   4   22:55:43  5857.90->5862.90  Hypopnea  5860.4 5857.9 5862.9 5857900000000->5862900000000
nsrr02 5  5   5   22:56:01  5875.30->5880.30  Hypopnea  5877.8 5875.3 5880.3 5875300000000->5880300000000
nsrr02 6  5   6   22:59:33  6087.20->6092.20  Hypopnea  6089.7 6087.2 6092.2 6087200000000->6092200000000
... (etc) ...

Now DUR is fixed at 5 seconds for each epoch; note how the start times are the same as above (e.g. 3043.70 seconds for the first epoch) but now the end is altered, reflecting the effect of start w=5.

Reducing/expanded annotations to epochs

If requested, note that either start, midpoint or stop are applied first (i.e. shrinking the annotation to a single time-point), followed by either w, w-before or w-after (i.e. expanding the interval either before, after or around (centered on) that time-point. Note that it is also possible to apply the w* expansion options with first reducing the annotations by start, midpoint or stop. This expands the interval by the requested number of seconds, at either the start (w-before), the end (w-after) or at both start and end (w).

EPOCH-ANNOT

Attach epoch-level annotations from a file, to an epoched EDF

This command reads a plain-text file from disk, expecting the .eannot format. It is possible to apply multiple sets of annotations to epochs with multiple EPOCH-ANNOT commands.

The behavior of this command similar but not identical to what would happen if the .eannot file were directly specified in the sample-list (i.e. as any other XML, .annot annotation file). As this command can be performed after the EDF has been loaded and manipulated (e.g. via RESTRUCTURE), the number of epochs (i.e. rows in the file) should match exactly the number of epochs given the current state of the in-memory EDF (i.e. after any restructuring, and with the current epoch definitions).

That is, if EPOCH generates 1022 epochs for a given EDF, then the annotation file must be exactly 1022 epochs. Luna will give an error if the EPOCH command has not been performed prior to EPOCH-ANNOT.

In contrast, when attaching an .eannot file via the sample-list, Luna assumes the .eannot file corresponds to the entire on-disk EDF (typically with the default 30-second epochs). (When attaching initially from a sample list (not EPOCH-ANNOT) the tolerance for exact matching can be altered with the special variables no-epoch-check and epoch-check.)

An optional recode parameter can be used to translate annotations on-the-fly.

Make sure to use plain-text files

Annotation files should be plain-text ASCII files with no special encodings, not RTF (rich text format), etc. Please see this FAQ.

Parameters

Parameter	Example	Description
`file`	`file=annots/id1.epochs`	File path/name to read annotations from (required)
`recode`	`recode=ST1=N1,ST2=N2`	Optional, comma-delimited list of recodings (from=to)

Outputs

This command does not produce any output per se, other than noting the number of epoch/annotations read in the log/console, e.g.

 CMD #2: EPOCH-ANNOT
 mapping 2 distinct epoch-annotations (1022 in total) from annots/test.eannot

Example

Here we attach epoch-annotations to an epoched EDF and use them to mask out certain epochs. For example, here we have a dummy annotation file, that contains an annotation of either T or A for each epoch. This particular EDF has 1022 30-second epochs, and so the file epoch1.eannot is the same length:

$ sort epoch1.eannot | sort | uniq -c
102 A
920 T

The file epoch1.eannot is a simple text-file, with either an A or a T on each line, and nothing else.

Note

Annotations are not restricted to A or T or single characters: they can be any text string, but should not contain spaces or special characters. A common use may be if sleep staging has been performed, so each row indicates N1, N2, N3, REM or Wake, etc.

To attach this file, and use it to select only A epochs:

luna my.edf -s ' EPOCH & EPOCH-ANNOT file=epoch1.eannot & MASK ifnot=A & RE '

 ..................................................................
 CMD #1: EPOCH
 set epochs, length 30 (step 30), 1022 epochs
 ..................................................................
 CMD #2: EPOCH-ANNOT
 mapping 2 distinct epoch-annotations (1022 in total) from epoch1.eannot
 ..................................................................
 CMD #3: MASK
 set masking mode to 'mask' (default)
 based on A 102 epochs match;  920 newly masked, 0 unmasked, 102 unchanged
 total of 102 of 1022 retained
 ..................................................................
 CMD #4: RESTRUCTURE
 restructuring as an EDF+ : keeping 3060 records of 30664, resetting mask
 retaining 102 epochs

Having selected epochs based on these external annotations, one might subsequently apply other analysis commands, or write out a new EDF (see WRITE), for example.

Working with multiple EDFs

When using sample-lists to work with multiple EDFs, it is often convenient to use the ^ special character in a script, which is replaced with the ID (from the first column of the sample-list, not the EDF header) for that individual. This enables the same script to point to different annotations files for different individuals (assuming that those annotation files are named based on the IDs).

Here is an example of using a script (instead of the -s option) for achieve the same result as above, but here using a sample list and renaming the annotation file to, for example, annots/id001.epoch.eannot. We might specify the sample list s.lst as follows, to assign the ID id001 to the EDF:

id001    my.edf

The Luna script (extract.txt) below also illustrates using a variable to specify more flexibly the required annotation, and writing a new EDF (with the WRITE command):

% Epoch the data (default 30 sec)

EPOCH

% Attach the matching file in the annots/ folder for this individual
% i.e. requires that files are named

EPOCH-ANNOT file=annots/^.eannot

% Set this mask, where the value of ${x} will be specified
% on the command line

MASK ifnot=${x}

% Apply the mask, actually restructuring the internal EDF
% (Note, RESTRUCTURE can be abbreviated as RE)

RESTRUCTURE

% Write a new EDF back to disk

WRITE edf-dir=edfs/            % write new EDFs in this directory/folder
      edf-tag=extract-${x}     % add this tag to the filename for each EDF
      sample-list=s-${x}.lst   % make a new sample-list to point to the new EDFs

Note how the ^ character is used to specify the individual/EDF ID. We can then run Luna, setting the x variable to A:

luna s.lst x=A < extract.txt

For individual id001, for example, Luna searches for annots/id001.eannot and then masks epochs that do not match the value specified by the variable ${x} (here set to A).

After RESTRUCTURE-ing, it WRITEs an EDF to edfs/my-extract-A.edf and creates a matching sample list s-A.lst. As a sanity check, running DESC on the new project:

luna s-A.lst -s DESC

correctly shows a 51-minute (i.e. 102 30-second epochs) EDF:

EDF file          : edfs/my-extract-A.edf
ID                : id001
Duration          : 00:51:00
Number of signals : 6
Signals           : EOG-L[256] EOG-R[256] EMG[256] EEG1[256] EEG2[256] EEG3[256]

Command & epoch types

Not all commands can be combined with generic epochs. Here we list the current constraints of particular commands with respect to epoch definitions. These fall into the following classes:

commands that ignore epoch definitions
commands that work with any epoch definition
commands that cannot use generic epoch definitions

Generally, Luna will tell you if there is a problem, but the detailed tables below are included for reference.

Commands that ignore epoch definitions

The following primarily do not touch signal-level data and are therefore not impacted by the presence or absence of any type of epoching:

ALIASES  ALIGN ANNOTS ANON CANONICAL CLOCS CONTAINS
CPT CWT-DESIGN DESC EDF ENFORCE-SR FILTER-DESIGN HEADERS
MAKE-ANNOTS MEANS OVERLAP RECORD-SIZE REMAP RENAME
SET-HEADERS SET-TIMESTAMPS SET-VAR SIGGEN SIGNALS
SIMUL SL SUMMARY TAG  TIME-TRACK TYPES  VARS  WRITE-ANNOTS

The following pull the entire signal and treat it as a continous time-series - i.e. they effectively ignore any epoch definitions. Typically, commands that manipulate/generate an EDF signal do not work with epochs, as they must replace the whole signal in the EDF.

1FNORM A2S ACF ADJUST ALTER COPY CWT DUMP-RECORDS
EMD FFT FILTER FLIP FREEZE HILBERT ICA MINMAX
mV OTSU RECS RECTIFY REFERENCE RESAMPLE
REVERSE S2A SEGMENTS SPANNING
THAW TLOCK TRANS TV uV WRITE Z-PEAKS

Commands that work with any epoch defintions

These commands will not consider signal data outside of unmasked epochs.

Of these, the following allow generic (variable-sized) epochs:

Command	Notes
`CHEP`	Variable epoch size allowed, but not directly accounted for in analysis
`CHEP-MASK`	(make more sense w/ equal sized : epochs weighted equally)
`DUMP-MASK`
`DUPES`
`EPOCH`
`EPOCH-ANNOT`	If no epochs defined, adds as fixed default (30s)
`GP`
`HEAD`	Select which epoch w/ "epoch" arg; always dump from epoch
`INTERPOLATE`
`MASK`
`MATRIX`	Only outputs data in epoched
`MSE`
`MTM`
`PSC`	Only works on stats, which may be epoch level but size etc is arbitrary; they will be equally weighted in analyses however
`PSD`
`RESTRUCTURE / RE`
`SEDF`	(but drops epoch timing information in output .sedf)
`SIGSTATS`	Outputs simple, unweighted epoch means
`TABULATE`
`XCORR`
```

Allow whole-recording, or epoch-level analysis, and allow variable-sized epochs:

Command	Notes
`CORREL`	(w/ `epoch` or `ch-epoch`)
`EVAL`	`interval` for whole-recording
`EXE`	(w/ `epoch`)
`LZW`	(w/ `epoch`)
`MI`	(w/ `epoch`)
`MS`	(w/ `epoch`)
`PSI`	(w/ `epoch`)
`SO`	Extra output only
`SPINDLES`	Assumes fixed epoch length for spindle/SO shuffling within-epoch (gives warning/error) : otherwise okay (for basic spindle counting per epoch)
`STATS`	(w/ `epoch`)

Commands that only work with uniform-sized epochs

Epoch-level commands that do not allow variable-sized epochs:

Command	Notes
`ARTIFACTS`
`EVAL-STAGES`
`HYPNO`
`PLACE`
`POPS`
`REBASE`
`SOAP`
`STAGE`

These commands can be run in either whole-signal mode, but if run in epoch-level mode, they do not allow variable-sized epochs:

Command	Notes
`CC`	w/ `epoch`
`COH`	w/ `epoch`
`IRASA`	Ignores any offset; assumes fixed epoch len, no overlap + zero offset
`LINE-DENOISE`	Assumes epochs are contiguous and no offset (and spans whole record, or last few points uncorrected)
`MOVING-AVERAGE`	w/ `epoch`, assumes epochs are contiguous and no offset (and spans whole record, or last few points uncorrected)
`PEAKS`	w/ `epoch`, assumes contiguous epochs
`ROBUST-NORM`	w/ `epoch`, assumes epochs are contiguous and no offset (and spans whole record, or last few points uncorrected)
`SUPPRESS-ECG`	Command currently forces 30s epochs after pulling whole signal
`ZC`	w/ `epoch`, assumes epochs are contiguous and no offset (and spans whole record, or last few points uncorrected)
